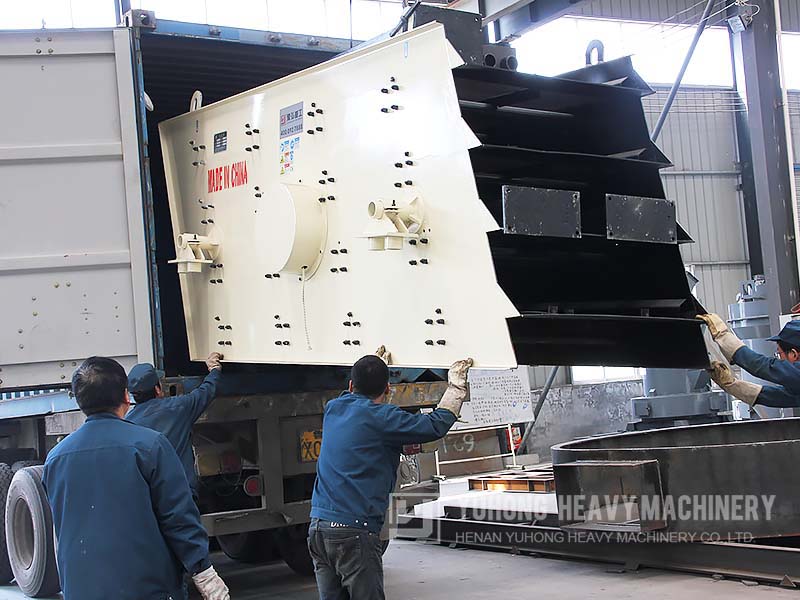

VIBRATING SCREEN

Type:Necessary Equipment
Input Size:0-100 mm
Processed Materials:River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc. .
Applications:Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.

Quantities can be customized

Send Email Chat Now

PRODUCTS

CRUSHER MACHINE

GRINDER MILL MACHINE

DRYER MACHINE

KILN MACHINE

ORE BENEFICATION MACHINE

AUXILIARY MACHINE

SOLUTION

Introduction
Working Principle
Features
Parameter
Inquiry

We have a wide range of Vibrating screens suitable for various screening application.Vibrating Screens are used to separate materials into various sizes for further processing in Crusher. Vibrating screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications. We offer vibro screens in a variety of combination of sizes to apt solutions for different capacity requirement for crushers. In screen grading, the material is separated mechanically on screen plates. Vibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen inclination, feeding system, screen RPM and vibration ratio. We can design and supply all ranges of vibrating screens according to the capacity and requirement.

Model	Sieve layer	Sieve area	Mesh size	Max feed size	Processing capacity	Vibrating frequency	Double amplitude	Motor power	Sieve obliquity	Sieve standard	Total weight	Dimensions
Model	Sieve layer	(㎡)	(mm)	(mm)	(m³/h)	(r/min)	(mm)	(kw)	(°)	(mm)	(kg)	(L×W×H) (mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.32	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1848	4	34.56	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2550×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
2YK2870	2	39.2	5-100	400	120-680	750	8	22×2	20	2800×7000	21200	7600×4320×1620
3YK2870	3	58.8	5-100	400	180-720	750	8	22×2	20	2800×7000	22400	7800×4320×2120
2YK3072	2	43.2	5-100	400	200-700	750	8	22×2	20	3000×7200	23600	7800×4520×1750
3YK3072	3	64.8	5-100	400	230-800	750	8	22×2	20	3000×7200	25500	8000×4520×2300
