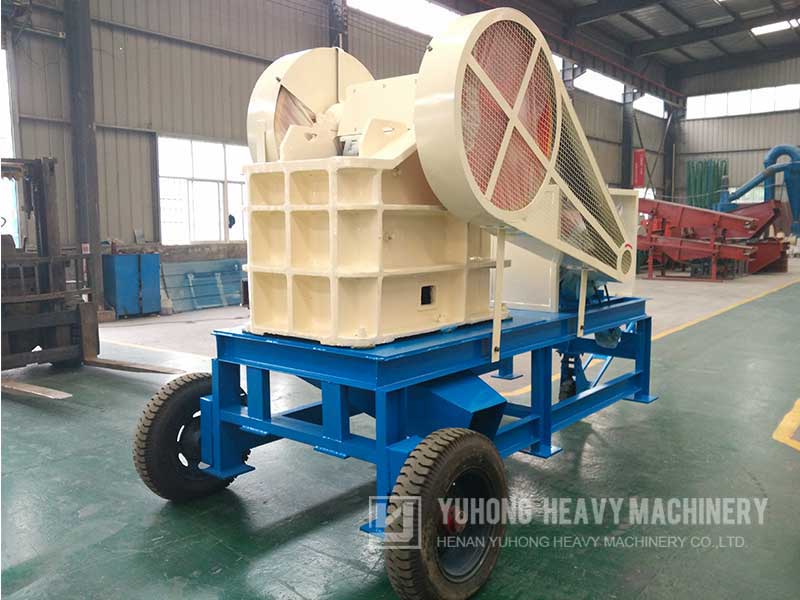

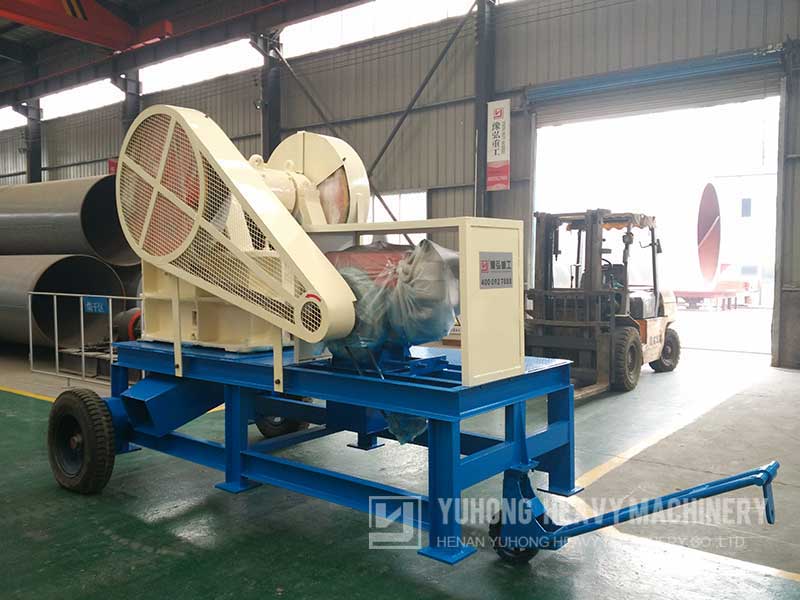

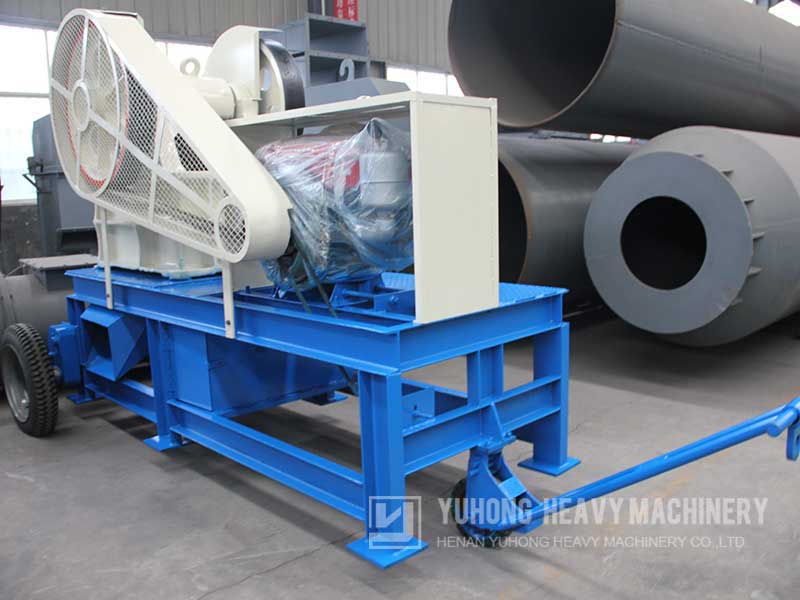

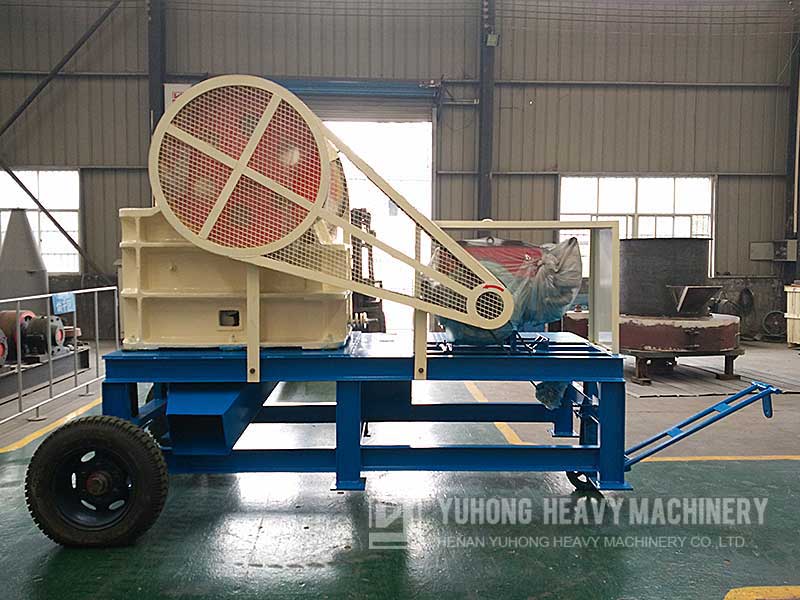

DIESEL ENGINE JAW CRUSHER

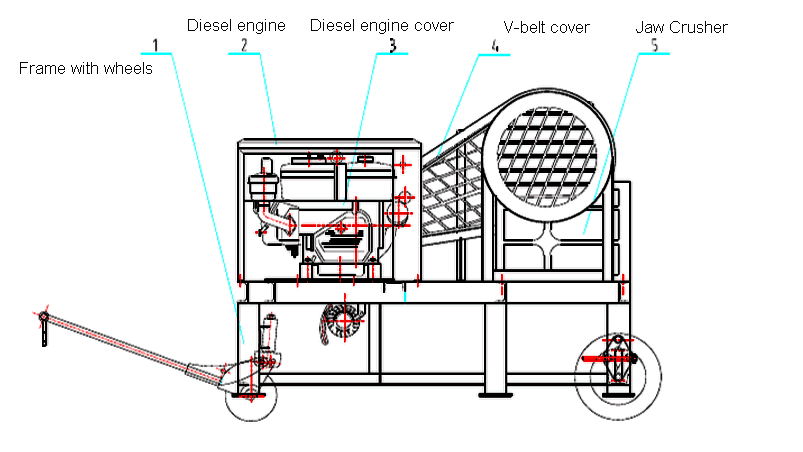

The diesel engine transmits power through belt and belt pulley, drives the swing jaw surround the eccentric  shaft do periodiction. The angle between toggle plate and swing jaw increases when swing jaw moves up, which makes the moving jaw get closes to the fixed jaw. At the same time the material is squeezed, rubbing, grinding and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

1. It has three tyres in the bottom, easy to move and operate, no need to install it to the ground;
2. Large crushing ratio, uniform particle size products;
3. Pad-style nesting population adjustment devices, and ease of adjustment range, and increase the flexibility of the equipment;
4. Safe and reliable lubrication system, convenient replacement parts, small maintenance workload;
5. Structure is simple, reliable; low operating costs;
6. Energy-saving equipment: stand-alone energy-saving 15% ~ 30%; energy saving of the system is more than doubled;
7. The discharging size of jaw crusher can be adjusted to meet the requirements of different users;
8. Low noise and less dust.
