CERAMSITE SAND ROTARY KILN_KILN MACHINE_Henan Yuhong Heavy Machinery Company( Yuhong Group

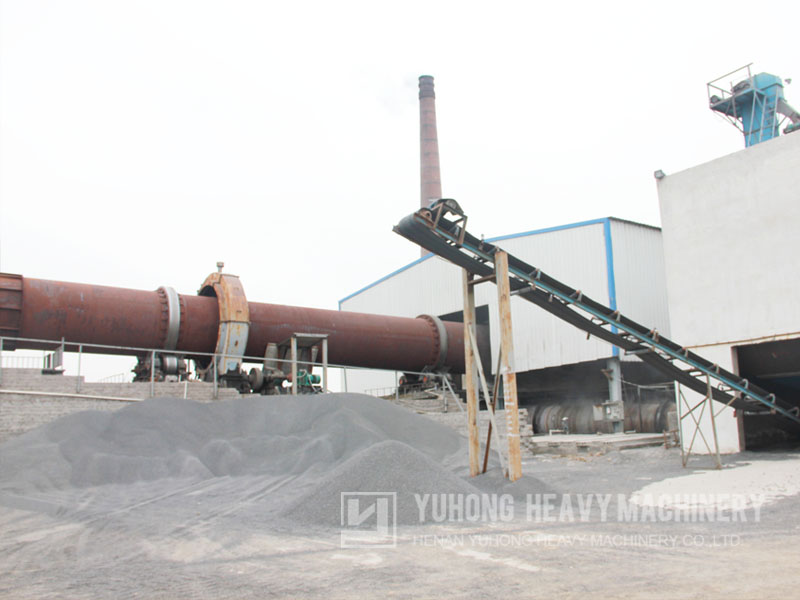

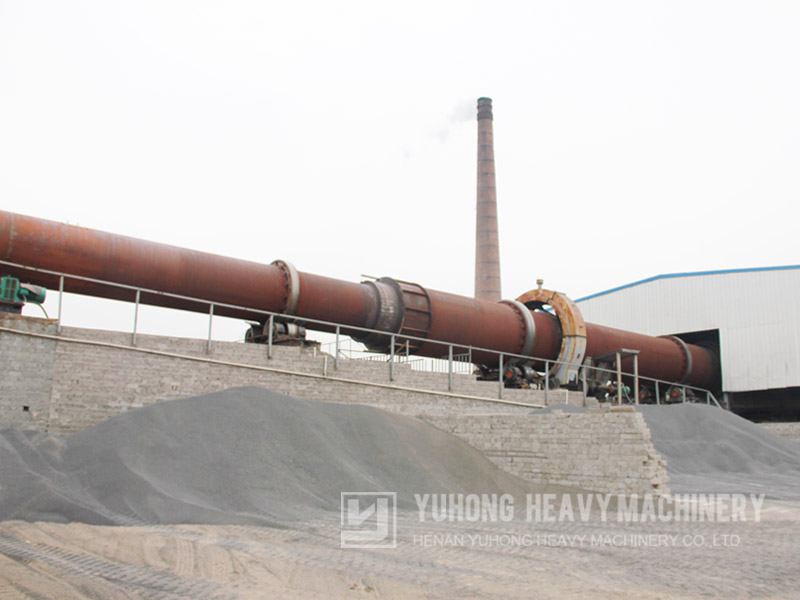

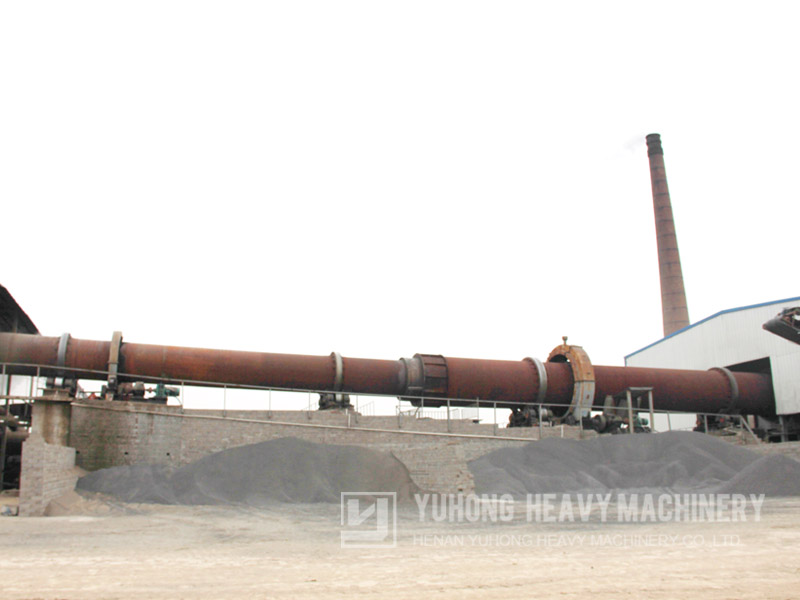

Our Yuhong Ceramsite sand rotary kiln is used to burn the super fine kaolin or white clay, and its burning temperature can reach 950℃～1050℃. With mature and advanced technology, our Ceramsite sand rotary kiln has the advantages of low energy consumption, high capacity . After dewatering ,decarbonizing, and whitening, the final product can be used in the papermaking and painting industry.
The processed material can be ceramsite sand , clay, bauxite, shale, mudstone, fly ash, coal gangue, industrial sludge and solid waste,etc. and the application can be ceramic concrete, oil fracturing proppant, building materials, fire-resistant insulation materials, water purification, gardening, food and beverage, chemicals, sewage treatment and other industries.

Whatever what kind the raw materials is, the technology process of ceramsite production line generally includes raw material homogenization, granulation, calcinating and cooling. Depending on different types and natures of the raw materials, the technology processes are below:
1. Plastic method process: Applying to clay and argillaceous material, the process is: clay → plasticizing & homogenizing → double-roll granulating → calcining → cooling → finished product.
2. Slurry balling process: Applying to coal ash or other powdery raw material, the process is: coal ash → mixing & homogenizing → balling & granulating→ calcining → cooling → finished product.
3. Powder grinding balls process: Applying for shale, coal gangue and similar materials, the process is: shale→ drying → grinding → prewetting → balling & granulating→ calcining → cooling → finished product, additive
4. Crushing (dry method) process: Applying to shale and other similar raw materials, the process is: shale → crushing & classifing → calcining → cooling → finished product.
5. Fuel: bituminous coal, heavy oil or natural gas, according to local fuel availability.

1. Simple structure, high unit volume, long furnace life, high running rate, stable operation, high heat transfer efficiency, low heat dissipation.
2. Automatic temperature control, over-temperature alarm, waste heat utilization of secondary air, long kiln lining life.
3. Advanced technology and equipment of kiln head & kiln end sealing, stable operation, high yield and other notable features.

Model	Rotate speed	Inclination	Capacity	Power	Weight
Model	(r/min)	(%)	(t/d)	(kw)	(t)
Φ1.4×33	0.39～3.96	3	25	18.5	47.5
Φ1.6×36	0.26～2.63	4	40	22	52
Φ1.8×45	0.16～1.62	4	70	30	78.2
Φ1.9×39	0.29～2.93	4	75	30	77.59
Φ2.0×40	0.23～2.26	3	100	37	119.1
Φ2.2×45	0.21～2.44	3.5	150	45	128.3
Φ2.5×40	0.44～2.44	3.5	250	55	149.61
Φ2.5×54	0.48～1.45	3.5	300	55	196.29
Φ2.7×42	0.10～1.52	3.5	400	55	198.5
Φ2.8×44	0.437～2.18	3.5	600	55	201.58
Φ3.0×48	0.6～3.48	3.5	800	100	237
Φ3.2×50	0.674～3.37	3.5	1000	160	252.4
Φ3.5×52.5	0.6～3.6	3.5	1500	180	366.5
Φ4.0×60	0.396～3.96	3.5	2500	315	523
Φ4.3×64	0.4～3.96	3.5	3200	420	606.69
Φ4.8×72	0.39～3.96	3.5	5000	630	853.3
Φ5.2×61	0.38～3.79	3.5	5500	800	859
Φ5.0×80	Max.3.5	4	6000	800	1201
Φ5.6×87	Max.4.23	4	8000	800	1227.5
