HAMMER CRUSHER_CRUSHER MACHINE_Henan Yuhong Heavy Machinery Company( Yuhong Group

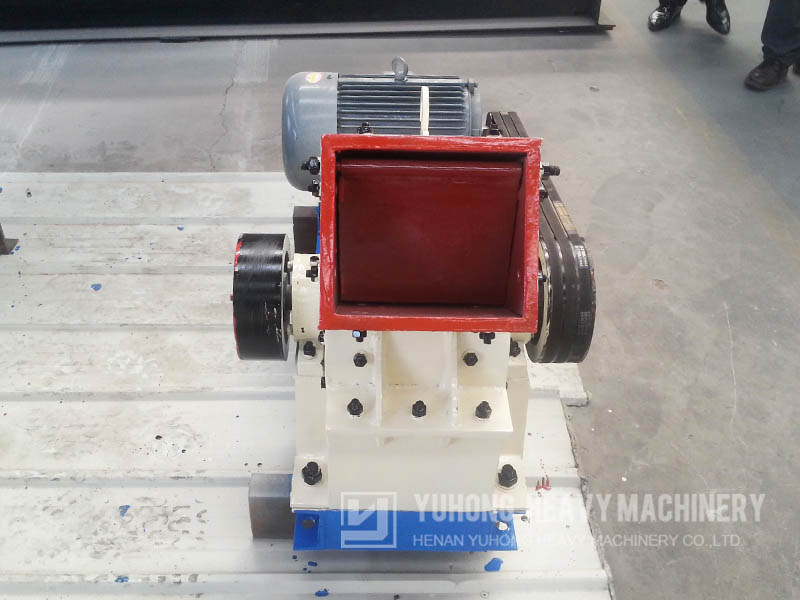

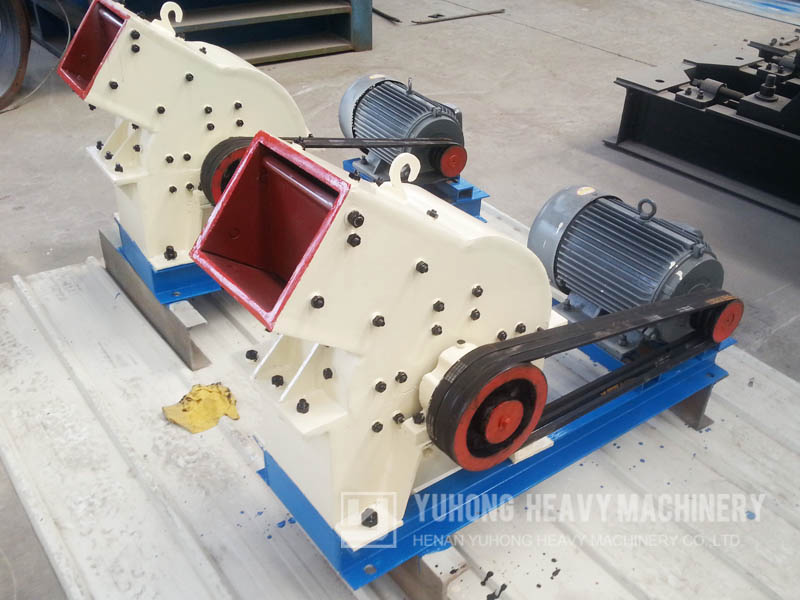

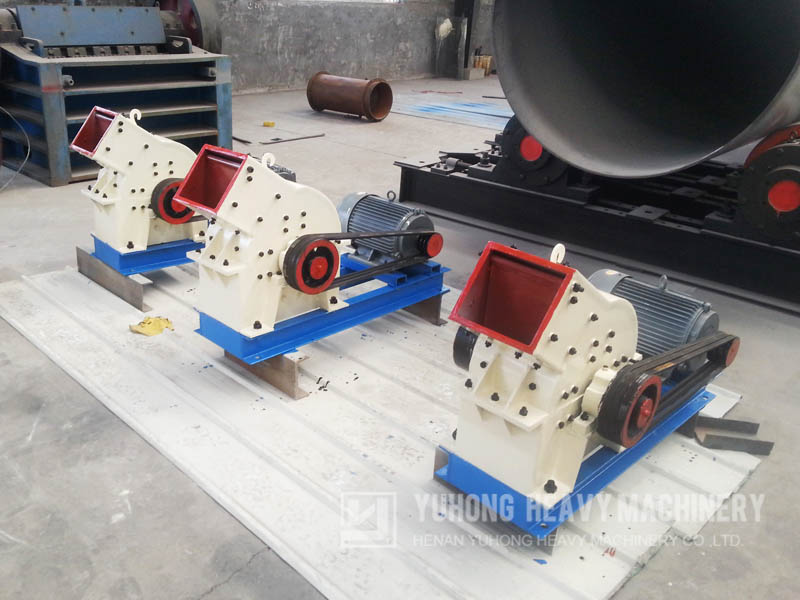

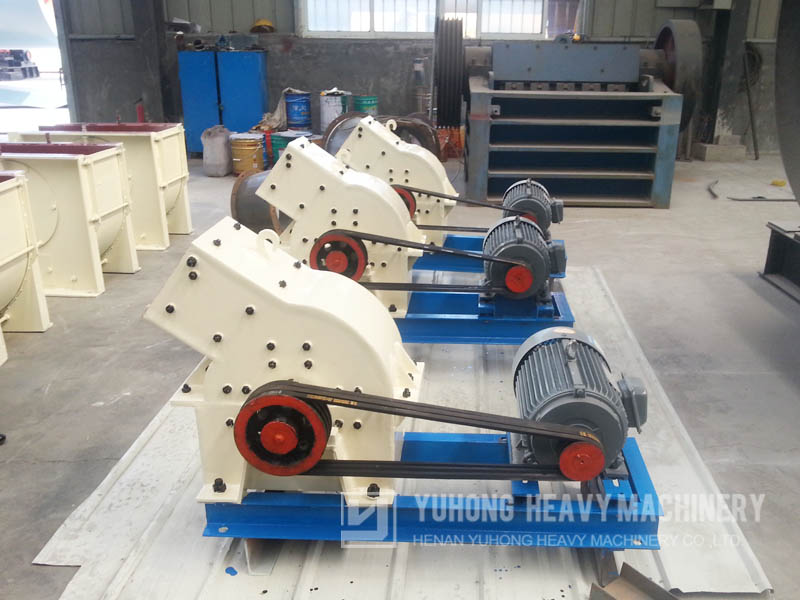

Hammer crusher is suitable for the fine crushing of limestone, coal or other medium hard brittle materials in metallurgical industry, building materials industry, chemical industry and hydropower industry. Hammer crusher has several features such as big crushing ratio, high production capacity and uniform product size. Hammer crusher can crush the maximum size of 600-1800 mm materials into 25mm or below 25 mm size, so it is also known as crusher hammer or hammer mill crusher. Because it is often used for coal crushing in coal mines, it is also known as coal crusher.

Model	Rotor speed	Feed opening size	Max feeding size	Discharghing size	Capacity	Motor power	Weight	Overall dimensions (L×W×H)
Model	(r/min)	(mm)	(mm)	(mm)	(t/h)	(kw)	(t)	(mm)
PC300 × 200	1500	100*200	20	0-10	1-5	5.5	0.32	630×380×630
PC400×300	1500	145×295	100	0-30	5-8	7.5	0.9	900×670×860
PC600×400	1000	295×450	100	0-35	10-12	18.5	1.5	1000×1000×1300
PC600×600	1000	295×570	100	0-35	12-18	45	2.14	1315×840×1501
PC800×600	1000	350×570	120	0-45	20-25	55	2.45	1515×2586×1040
PC800×800	1000	350×850	120	0-45	35-45	55	3.05	1515×2831×1040
PC1000×800	1000	580×580	200	0-45	25-40	110	6.5	3206×2210×1515
PC1000×1000	1000	580×1060	200	0-45	40-80	132	7.59	3514×2230×1515
PC 1250×800	750	650×850	200	0-45	20-50	132	11.7	2630×1780×2050
PC1250×1250	750	650×1330	200	0-45	90-110	185	13.2	2630×2180×2050
PC1400×1400	750	1050×1540	250	0-45	120-170	280	17.2	2790×2800×2310
PC1600×1600	600	1500×1785	350	0-60	220-280	450	22.8	3350×3120×2660

When the hammer crusher or hammer crushing machine works, the motor drives the rotor to spin at high speed, materials are fed into the crushing cavity evenly, and then be impacted, cut and tore by high speed spinning hammerhead till they are completely crushed. Meanwhile, the gravity action of materials forces them to crash the baffle and grate bars on the frame. Materials with particle size smaller than the screen size will pass the sieve plate while those with bigger particle size are stopped on the plate and will continue to be impacted and grounded by the hammer until they are crushed to the required particle size, finally, crushed materials will be discharged from the hammer crusher through the sieve plate.

1. The hammer head is casted by new technology, which is very wear-resisting and impact resistance.
2. We can meet customer’s need by adjusting the particle size.
3. The sealing system of hammer crusher solves the problem of dust pollution and ash leakage.
4. The design of hammer crusher is very beautiful, the structure is tight, the wear-part is very little, and the maintenance is very easy.
