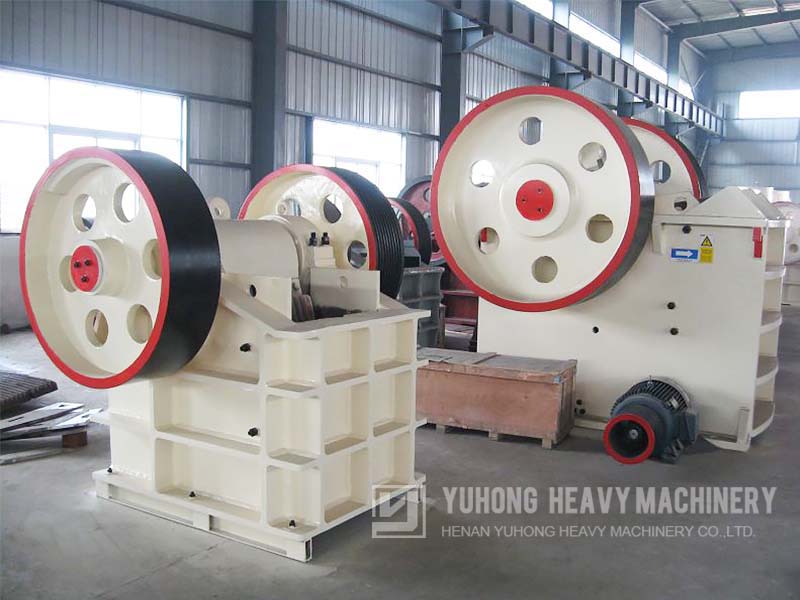

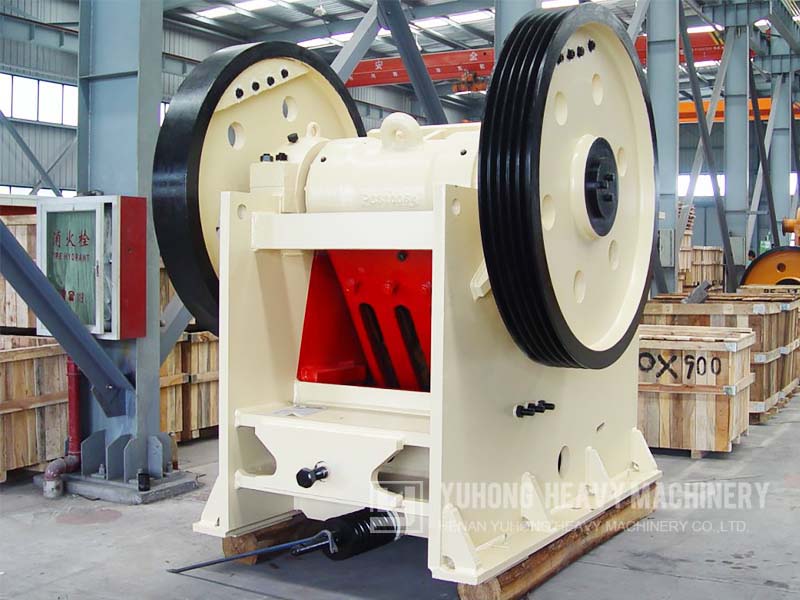

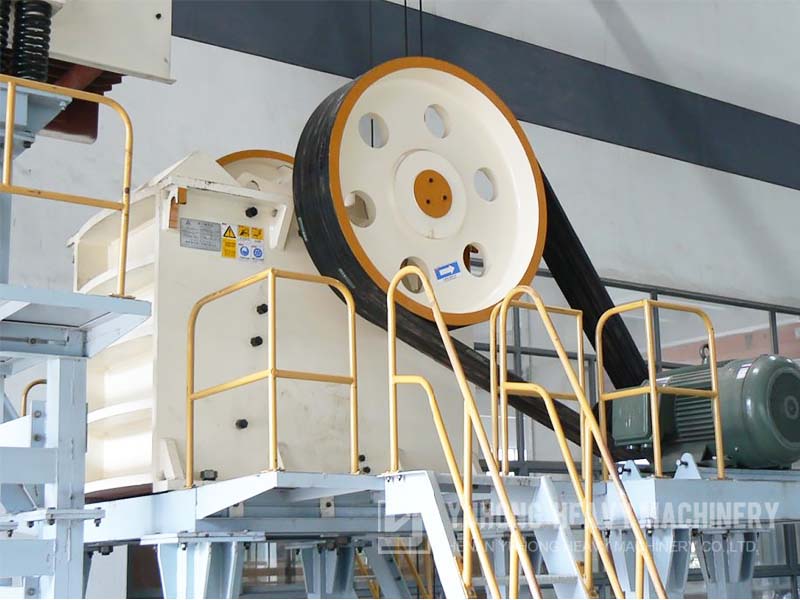

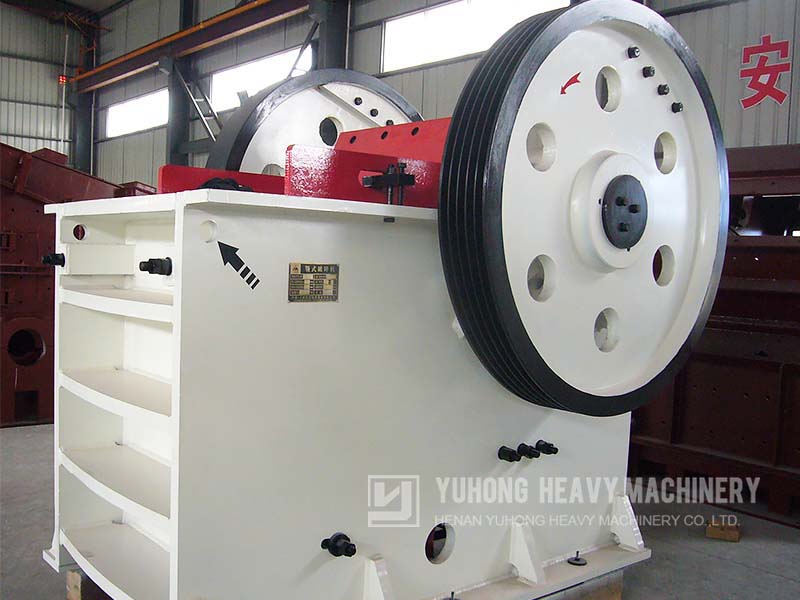

JAW CRUSHER

Type:Primary Crusher
Input Size:200-1200mm
Processed Materials:Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc. .
Applications:Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

Quantities can be customized

Send Email Chat Now

PRODUCTS

CRUSHER MACHINE

GRINDER MILL MACHINE

DRYER MACHINE

KILN MACHINE

ORE BENEFICATION MACHINE

AUXILIARY MACHINE

SOLUTION

Introduction
Working Principle
Features
Parameter
Inquiry

Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.
Jaw crusher movement is obtained by using a pivot point located at one end of the “swing jaw”, and an eccentric motion located at the opposite end.

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Contact us now if you have any question about our company and products. Any of your inquiry and suggestion will be highly appreciated. We will keep your information completely private.

info@cnyhzg.com +86-371-86688302 yuhongmachine

Model	Max feeding size	Adjustable discharging opening	Capacity	Eccentrical axle speed rate	Motor power	Weight	Overall Dimensions
Model	(mm)	(mm)	(t/h)	(r/min)	(kw)	(t)	(mm)
PE-150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
