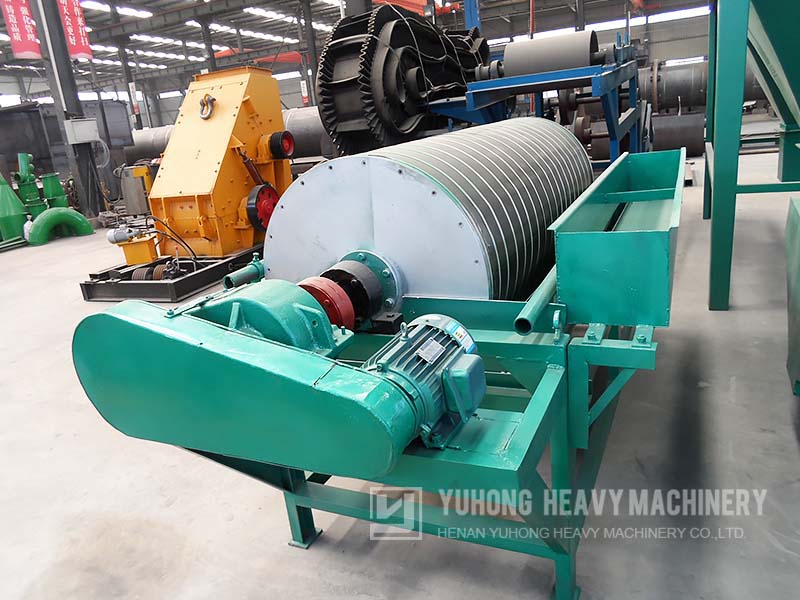

MAGNETIC SEPARATOR

Type:Metal ore beneficiation equipment
Input Size:0-3 mm
Processed Materials:Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc..
Applications:Magnetic separator is used for particle size below 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials wet magnetic separator, and also for coal, non-metallic minerals, building materials and other materials iron remover.

Quantities can be customized

Send Email Chat Now

PRODUCTS

CRUSHER MACHINE

GRINDER MILL MACHINE

DRYER MACHINE

KILN MACHINE

ORE BENEFICATION MACHINE

AUXILIARY MACHINE

SOLUTION

Introduction
Working Principle
Features
Parameter
Inquiry

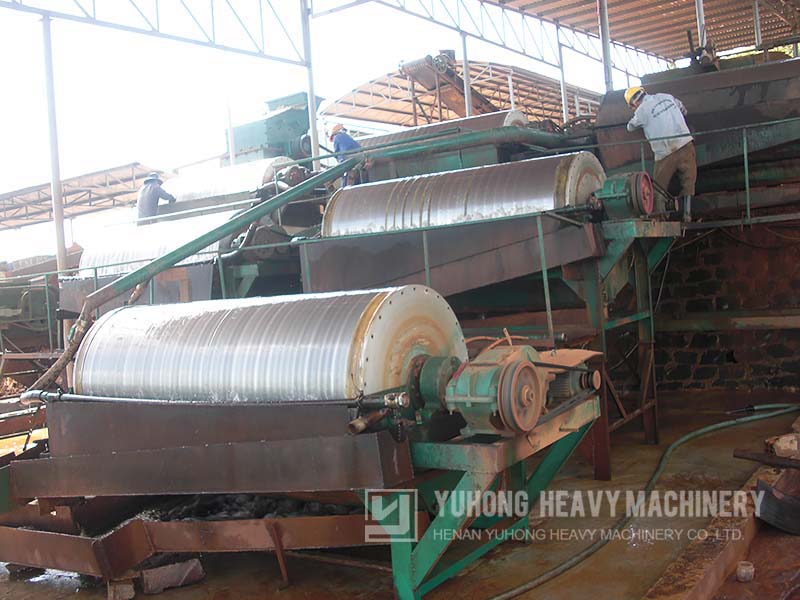

Magnetic separator is used for wet magnetic separation, separating materials with granularity below 3mm, such as magnetite, hematite, limonite, pyrrhotite, ilmenite. It is also used for deironing of coal, nonmetallic ore, construction industry, etc.ZONEDING can provide magnetic separator of forward flow, semi counter flow and counter flow types as customers’ requirements. We can provide magnetic separators of forward flow, semi counter flow and counter flow types as customers’ requirements.

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Contact us now if you have any question about our company and products. Any of your inquiry and suggestion will be highly appreciated. We will keep your information completely private.

info@cnyhzg.com +86-371-86688302 yuhongmachine

Model	Roller diameter	Length	Rotation speed of drum	Max feeding size	Processing capacity	Power
Model	(mm)	(mm)	(r/min)	(mm)	(t/h)	(kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11

Model	Roller size	Matching belt width	Magnetic induction intensity of drum durface (GS)	Feeding size	Processing capacity
Model	(D×L)(mm)	(mm)	Magnetic induction intensity of drum durface (GS)	(mm)	(t/h)
XCT465	400×650	500	Range 1600-4500GS	＜70	5
XCT565	500×650	500		＜70	10
XCT665	600×650	500		＜70	15
XCT68	600×800	650		＜80	20
XCT758	750×800	650	Range 1600-5500GS	＜80	25
XCT7595	750×950	800		＜80	30
XCT995	900×950	800		＜80	150-210
XCT10115	1000×1150	1000		＜80	350-430
