BENTONITE DRYER

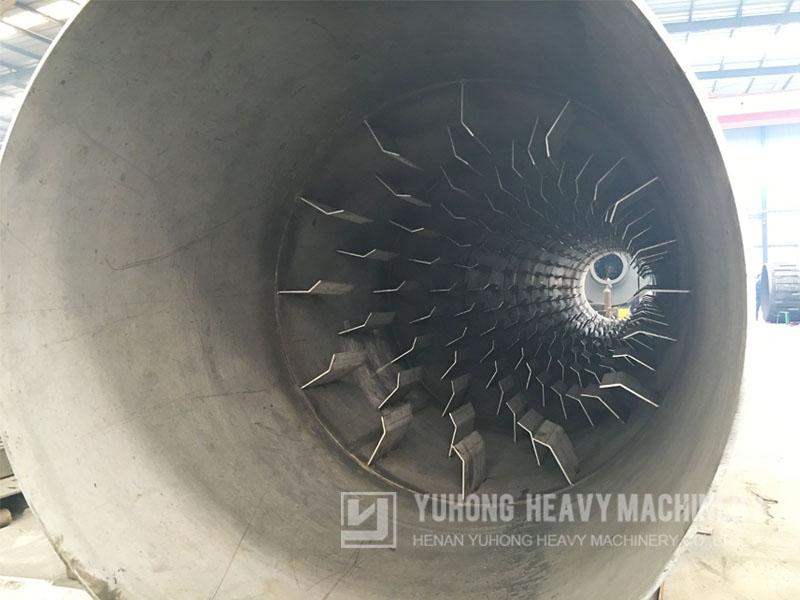

Material fed into the bentonite dryer by feeding device, then lifted to a certain height by lifting plate installed in the dryer, and will be crushed by high-speed rotating blade when items falling down, repeat the process until materials be discharged through the discharge mouth. The hot air produced by the direct combustion hot blast stove enters into the kaolin dryer and makes full contact with the material, to dry the material rapidly, and then the dried material will be discharged through the conveyor installed at the discharge end of bentonite dryer. Staggered various lifting board with different perspectives are welded inside the kaolin drying machine from front to back. In order to prevent shuffling, door ring and spiral lifting board are designed at the feed end. Kaolin dryer is installed on the roller device through the front and rear bearing device, and the blocking-wheel on the rear wheel is designed to control the axial motion of the dryer. Kaolin drying machine rotation is driven by the gearing through the rotation of fixed gears on the dryer.

1. Bentonite dryer has large capacity, low fuel consumption and low drying cost.
2. Bentonite dryer has the characteristic of high temperature resistant, so it can dry material by using hot air with high temperature.
3. High scalability, the design considers the production margin, so modest increasing in output is OK without changing equipment.

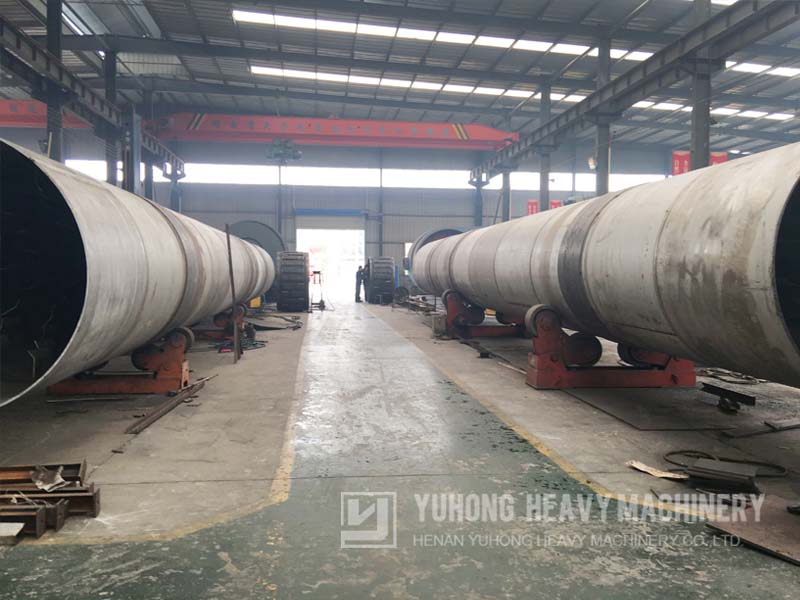

4. The kaolin drying machine adopts the structure of spherical tug, and the tug and roll ring fits well, significantly reducing wear and tear and power consumption.
5. Specifically designed retaining structure greatly reduces the horizontal thrust due to tilt running of the device; Strong resistance to overload, and the cylinder of the kaolin dryer is with stable operation and high reliability.
