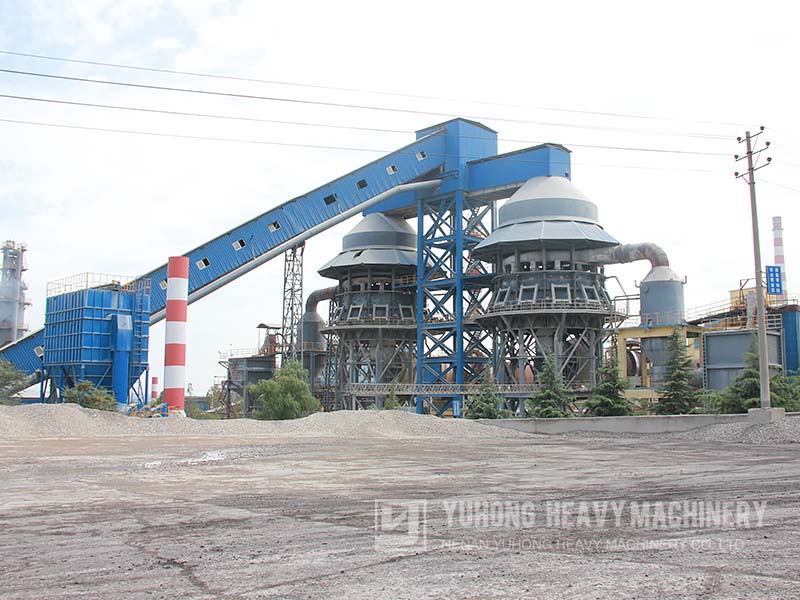

VERTICAL SHAFT PREHEATER

According to the place of preheater in rotary kiln system and negative pressure working principle of preheater. Heat emission is heat convective the material and air is convection movement. When the raw materials fed into the preheater under the negative pressure condition to prevent cold air into the preheater the inlet of raw materials must take effective seal. This is to ensure the effective use of heat and material preheating effect. The standard of preheating quality in the preheater is the feeding room’s temperature which is in the bottom of preheater. Kiln temperature is: detected by thermocouple in the side wall of feeding room including the flame radiation and air temperature. It reflects the firing temperature when feed into kiln but also the degree of feedback the final warm-up temperature of the material. To Preheater Truly reflects the effective temperature of the material is outlet temperature of the Preheater top. Temperature control on this point is more important than the end of the rotary kiln temperature control. Within preheater materials after preheating and pre-decomposition pushing out from Preheater to rotary kiln by hydraulic plunger device.

1. The upper feeding system: includes the upper hopper the next material possession the next feeding method and structure can guarantee to the pre-heater of the body feeding to achieve security when closed. So that the cold air from outside can not enter into the preheater and feeding can make use of valve rod to achieve continuous or intermittent feeding.
2. Preheater body: it is to ensure that material preheated to 900 degrees celsius of the most important part. It is by the warm room hanging devices and brick lining (which does not belong to the scope of design and manufacturing equipment) and other parts. That part of the structure of most of metal structures part of the material according to the need to use a heat-resistant steel heat-resistant steel to 1100 degrees celsius in 1000 to work under high temperatures. In addition the refractory bricks lining structure novel design sealing is good can guarantee the material in pre-heater evenly and achieve pre-heating temperature preheating.
3. Pusher devices: mainly rod framework and connecting rods and other parts of rod using heat-resistant steel casting or welded together can withstand high temperatures using electronic control and hydraulic systems can be by putting the various hydraulic automatic control program to achieve sequential pusher.
4. The hydraulic system: includes tanks pumps motors solenoid valves hydraulic tubing etc. his main role is to control the pusher device to push the completion of material movement.
5. Bottom feeding room: The main include slide tube feeding the main room feeding slip mouth and so on its main role is to import the materials after preheating rotary kiln calcination.
6. framework: It includes columns and ring beam and so on the main role is to carry The upper part of the structure.
