LIMESTONE GRINDING MILL

    • Type:Mineral Ore Powder Making

    • Input Size:33-40mm

    • Processed Materials:Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..

    • Applications:Limestone, cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.


Quantities can be customized

Send Email Chat Now

PRODUCTS

CRUSHER MACHINE
GRINDER MILL MACHINE
DRYER MACHINE
KILN MACHINE
ORE BENEFICATION MACHINE
AUXILIARY MACHINE

SOLUTION

contact us
  • Introduction
  • Working Principle
  • Features
  • Parameter
  • Inquiry

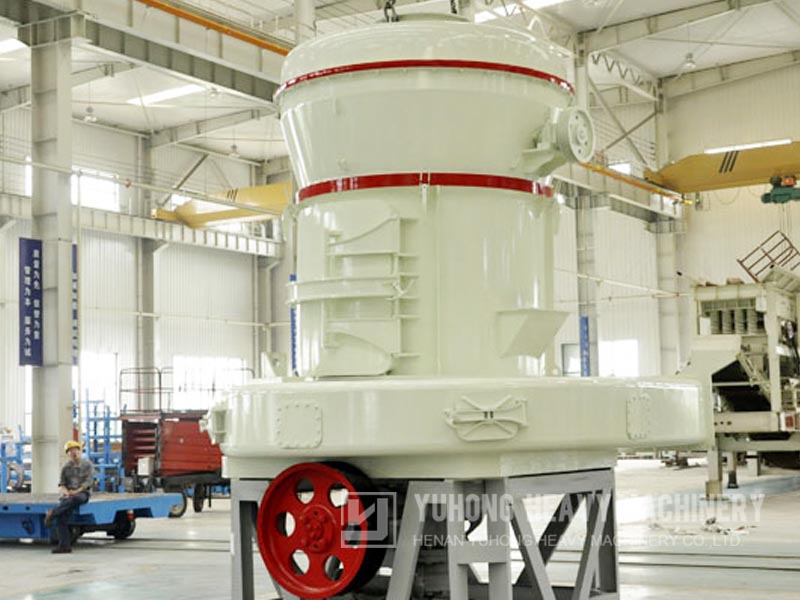

MTW Limestone Grinding Mill--- the latest type of Raymond Mill, has become one of the most advanced limestone grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc.

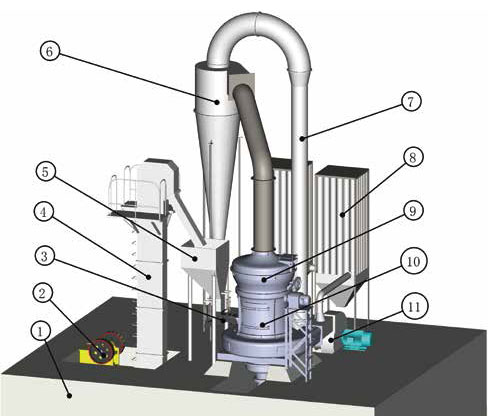

1. Concrete foundation 2. Jaw crusher 3. Electro-vibrating feeder 4. Bucket elevator 5. Stock bin
6. Whirlwind powder collector 7. Pipeline 8. Bag-type dust collector 9. Classifier 10. Main unit 11. Fan

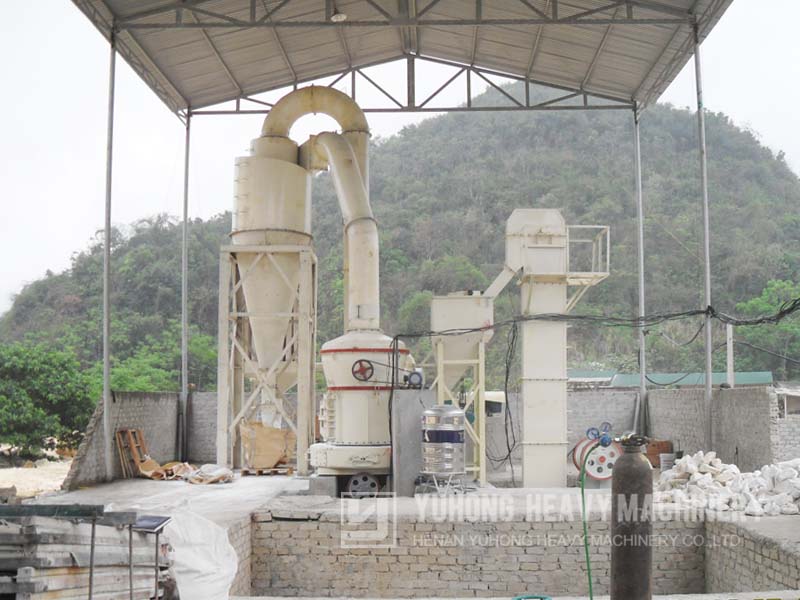

The system consists of limestone grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.

Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system.


1. Efficient
Bevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings.
2. Economical
Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity.
3. Advanced
Arc air channel reduces energy consumption and intelligent control ensures better operation.
4. Environmentally friendly
Unique air recycling system and dust collector make clean environment.

1. Classifier oil sump   2. Classifier blade   3. Hinged support   4. Grinding roller part
5. Engine base   6. Gear case   7. Transmission shaft part   8. Main unit belt pulley
9. Grinding ring   10. Grinding roller   11. Grinding roller hanger   12. Classifier belt pulley


Model Specification NameMTW110MTW138MTW175MTW215
Quantity of roller (PCS)4455
Inner diameter of ring (mm)Ф1100Ф1380Ф1750Ф2150
Rotary speed of main frame (r/min)120967565
Max. Feeding size (mm)< 30< 35< 40<50
Output size (mm)1.6～0.045
The fineness is 0.038		1.6～0.045
The fineness is 0.038		1.6～0.045
The fineness is 0.038		1.6-0.055
The fineness is 0.045
Capacity (t/h)3.5～106.5～1511～2520-50
Overall dimension (mm)8910×6950×901010920×9655×1022712095×10023×991614500x11200x10400
Total weight (t)1828.54696


NameItemUnitSpecifications & Technical Data
MTW110MTW138MTW175MTW215
Motor for
mainframe		Model
YX3-280M-6YX3-315M-6Y2-355M2-8Y3-400-8
Powerkw5590160280
Revrpm980990740740
Adjustable speed
motor for classifier		Model
YVP160M-6YVP200L2-6YVP250M-6YVP280M-4
Powerkw7.5223790
Revrpm14409809801470
Motor for
centrifugal blower		Model
YX3-250M-4YX3-315S-4YX3-315L2-4YX3-355L2-4
Powerkw55110200315
REVrpm1480148014801480
Accessary
equipment		Bucket
Elevator		Model
TH250x8mTH315x8.5mTH315x10.5mTB315x11.5m
Motor model
YX3-100L2-4YX3-112M-4YX3-112M-4YX3-160M-4
Powerkw34411
Revrpm1420144014801440
Jaw
Crusher		ModelPEPE250×400PE250×400PE250×750PC1010
YX3-180L-6YX3-180L-6YX3-200L2-6YX3-315L1-6
Powerkw151522110
REVrpm970970970990
FeederModel
GZ2FGZ3FGZ4FGZ5F
Powerkw0.150.20.450.65
