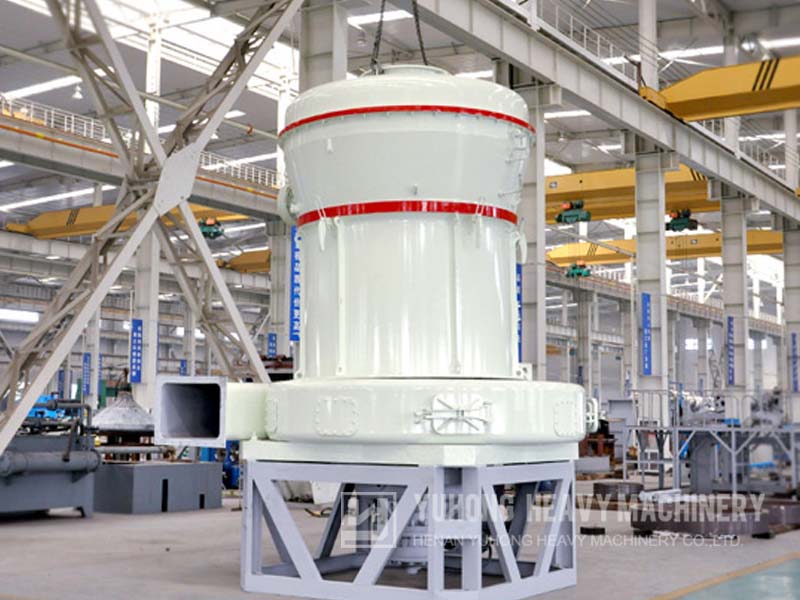

MTW Coal Grinding Mill--- the latest type of Raymond Mill, has become one of the most advanced coal grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc.

The MTW coal grinding mill is mainly applicable to grinding process of mineral materials in metallurgy, building material, chemical and mine industries, etc. It can process the non-flammable and non-explosive mineral materials of hardness less than 9 on Moh’s scale, and the humidity less than 6%, including quartz, feldspar, calcite, talcum, barites, fluorite, tombarthite, marble, ceramic, bauxite, manganese ore, iron ore, copper ore, phosphate ore, iron oxide red, zircon sand, mineral waste residue, water granulated slag, cement clinker, active carbon, dolomite, granite, granat, iron oxide yellow, chemical fertilizer, compound fertilizer, flyash, soft coal, coking coal, lignitous coal, magnesite, chromium oxide green, gold ore, red mud, clay, kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, medical stone, rhyolite, diabase, pyrophyllite, shale, red sandstone, stromatolite, basalt, gypsum, graphite, carborundum, thermal insulation material, etc..

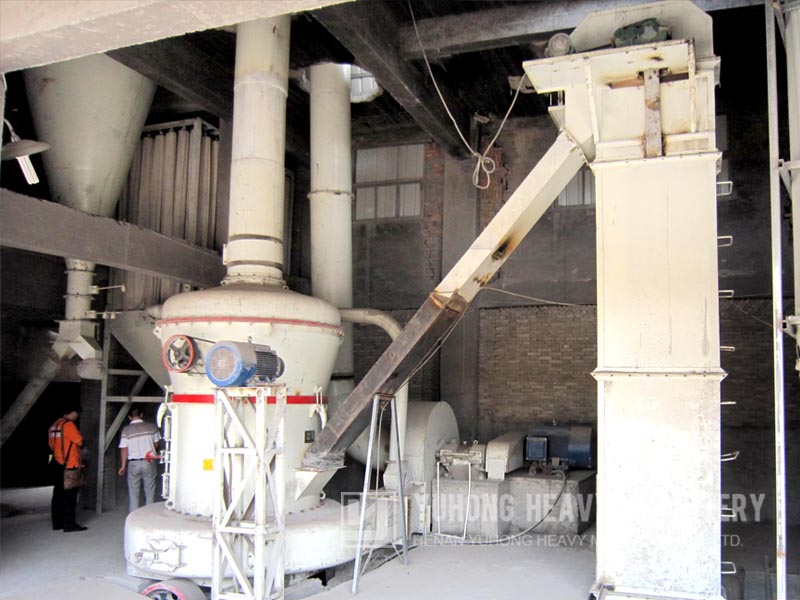

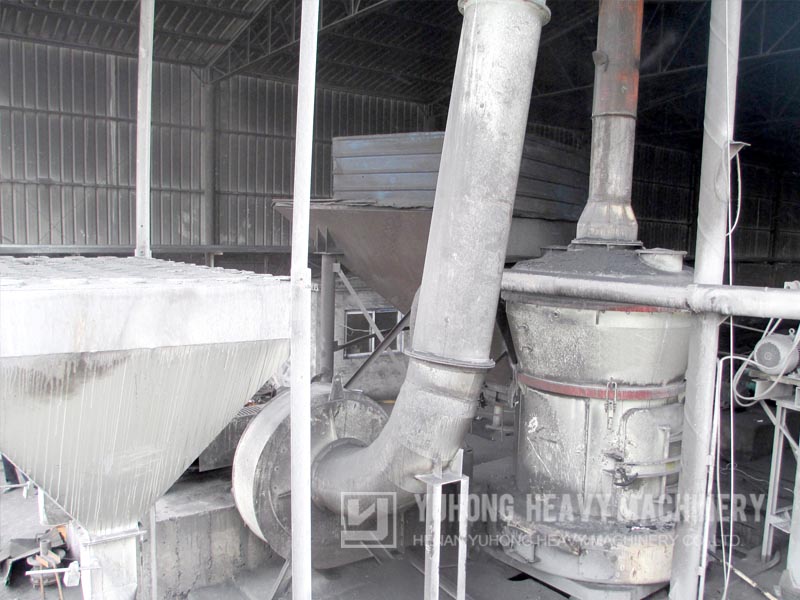

The system consists of coal grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.

Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system.

1. Efficient
Bevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings.
2. Economical
Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity.
3. Advanced
Arc air channel reduces energy consumption and intelligent control ensures better operation.
4. Environmentally friendly
Unique air recycling system and dust collector make clean environment.

Model Specification Name	MTW110	MTW138	MTW175	MTW215
Quantity of roller (PCS)	4	4	5	5
Inner diameter of ring (mm)	Ф1100	Ф1380	Ф1750	Ф2150
Rotary speed of main frame (r/min)	120	96	75	65
Max. Feeding size (mm)	< 30	< 35	< 40	<50
Output size (mm)	1.6～0.045 The fineness is 0.038	1.6～0.045 The fineness is 0.038	1.6～0.045 The fineness is 0.038	1.6-0.055 The fineness is 0.045
Capacity (t/h)	3.5～10	6.5～15	11～25	20-50
Overall dimension (mm)	8910×6950×9010	10920×9655×10227	12095×10023×9916	14500x11200x10400
Total weight (t)	18	28.5	46	96

Name		Item	Unit	Specifications & Technical Data
Name		Item	Unit	MTW110	MTW138	MTW175	MTW215
Motor for mainframe		Model		YX3-280M-6	YX3-315M-6	Y2-355M2-8	Y3-400-8
		Power	kw	55	90	160	280
		Rev	rpm	980	990	740	740
Adjustable speed motor for classifier		Model		YVP160M-6	YVP200L2-6	YVP250M-6	YVP280M-4
		Power	kw	7.5	22	37	90
		Rev	rpm	1440	980	980	1470
Motor for centrifugal blower		Model		YX3-250M-4	YX3-315S-4	YX3-315L2-4	YX3-355L2-4
		Power	kw	55	110	200	315
		REV	rpm	1480	1480	1480	1480
Accessary equipment	Bucket Elevator	Model		TH250x8m	TH315x8.5m	TH315x10.5m	TB315x11.5m
		Motor model		YX3-100L2-4	YX3-112M-4	YX3-112M-4	YX3-160M-4
		Power	kw	3	4	4	11
		Rev	rpm	1420	1440	1480	1440
	Jaw Crusher	Model	PE	PE250×400	PE250×400	PE250×750	PC1010
		Model	PE	YX3-180L-6	YX3-180L-6	YX3-200L2-6	YX3-315L1-6
		Power	kw	15	15	22	110
		REV	rpm	970	970	970	990
	Feeder	Model		GZ2F	GZ3F	GZ4F	GZ5F
	Feeder	Power	kw	0.15	0.2	0.45	0.65
