GRAPHITE ROTARY DRYER

Processed Materials:Graphite, micro powder etc.
Application:Industries of metallurgy, chemical engineering, construction materials, cement and mining, etc
Capacity:1-10tones per hour
Heating Fuel:Coal, Gas, Oil, Biomass fuels, Wood,etc

Quantities can be customized

Send Email Chat Now

PRODUCTS

CRUSHER MACHINE

GRINDER MILL MACHINE

DRYER MACHINE

KILN MACHINE

ORE BENEFICATION MACHINE

AUXILIARY MACHINE

SOLUTION

Introduction
Working Principle
Features
Parameter
Inquiry

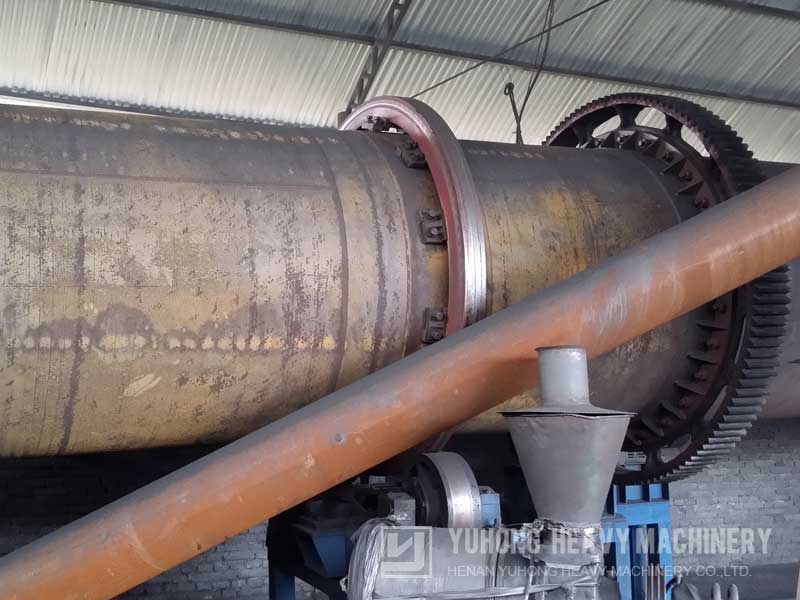

Graphite rotary dryer (Rotary Drum Dryer) is the ideal drying equipments to dry a variety of powder, granules, massive material with humidity. This rotary drum dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.

Material to be dried:
1. Applicable for drying big particles, heavy particles in chemical, mining, and metallurgy, such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine.
2. For drying the powder or particles with special requirements, such as H P foaming blowing agent, residule of alcohol, light calcium carbonate, active clay, magnetic powder, graphite, and residue of medicine.
3. For materials to be dried under low temperature and large lot continuous production.

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Contact us now if you have any question about our company and products. Any of your inquiry and suggestion will be highly appreciated. We will keep your information completely private.

info@cnyhzg.com +86-371-86688302 yuhongmachine

Item	Capacity	Rotary speed	Motor power	Install angle	Moister final
Item	(t/h)	(rpm)	(kw)	(°)	Moister final
Φ1.0x5.0m	0.5~1.2	0.6~6	4	3~5	≤1.5%
Φ1.2x6~10m	1.5~3	0.6~6	5.5	3~5	≤1.5%
Φ1.5x12~18m	3~5.5	0.6~6	15	3~5	≤1.5%
Φ1.8x12~18m	5~6.5	0.6~6	18.5	3~5	≤1.5%
Φ2.2x12~22m	7~12	0.6~6	22	3~5	≤1.5%
Φ2.4x15~20m	9~15	0.6~6	30	3~5	≤1.5%
Φ3.0x25m	16	0.6~6	55	3~5	≤1.5%
